NEW ASSIUT BARRAGE

Project Overview

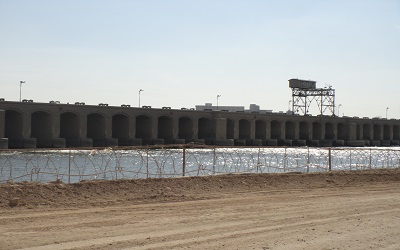

The new Assiut Barrage on the Nile will replace an existing dam dating back to the early 20th century. The new dam will have four 8 MW turbines, with double locks to allow navigation on the Nile and is designed to maintain a head of 4 meters to ensure discharge of a minimum 445 m3/s flow into the Ibrahimia Canal to irrigate nearly 700,000 hectares of land between the dam and Cairo.

Our Mission
Setec Egypte was assigned to the Public Road Bridge

Our Scope
Setec Egypte was responsible for the structural works starting from modeling &analysis, passing through detailed design calculations notes, detailed formwork and reinforcement shop drawings and finally As-built drawings for all the structural elements.

KEY FACTS


  • Country: Egypt
  • Owner: Egyptian Ministry of water resources & irrigation
  • Client: Vinci Construction
    (EF NABJV) The Egyptian-French New Barrage Assiut Joint-Venture
  • Consultant: Lahmeyer International for the Dam Bridge
    ACE for the Administration Buildings
  • Period: 2013-2015
